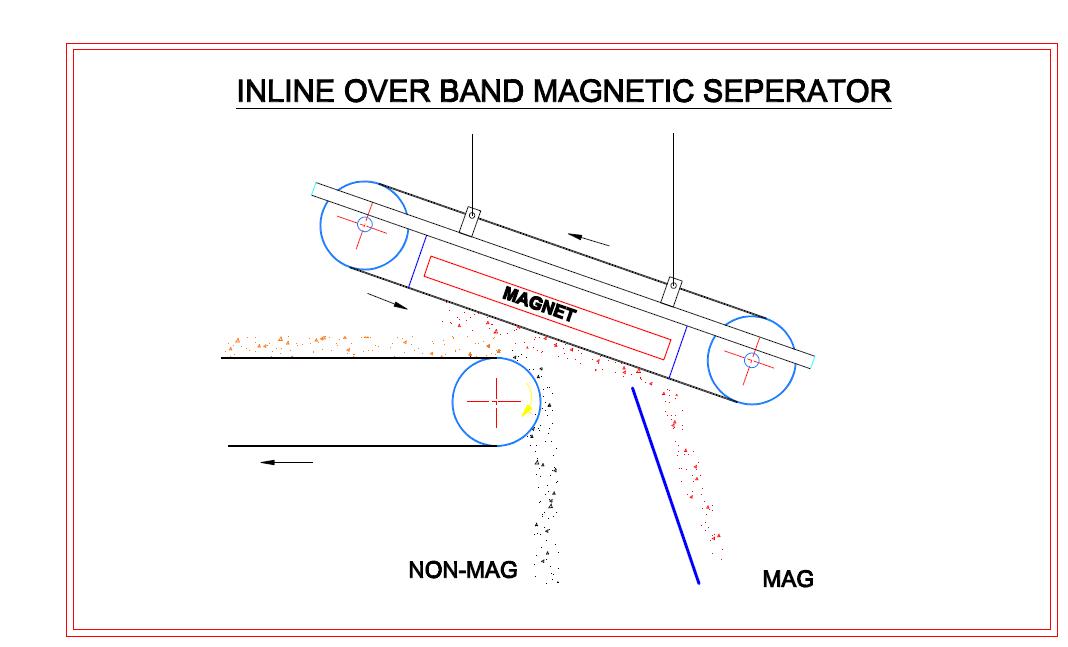

Sketch Image
Electromagnetic Overband Magnets have a deeply penetrating magnetic field and are therefore suitable for very thick layers. A control box is required. Installation perpendicular to or in line with conveyor belt.
Overband can be positioned either inline over a conveyor head pulley or across on conveyor belt. All models are designed to be virtually maintenance free and are available with an electric drive. Overband Magnetic Separators are designed on the basis of conveyor belt width.
• Deep magnetic field
• Max. installation height 450 mm
• Max. layer thickness 300 mm
• Separate Fe particles from 1 mm
• For belt widths 600 - 1600 mm
• Electromagnet (Air cooled OR Oil cooled)
Image Gallery

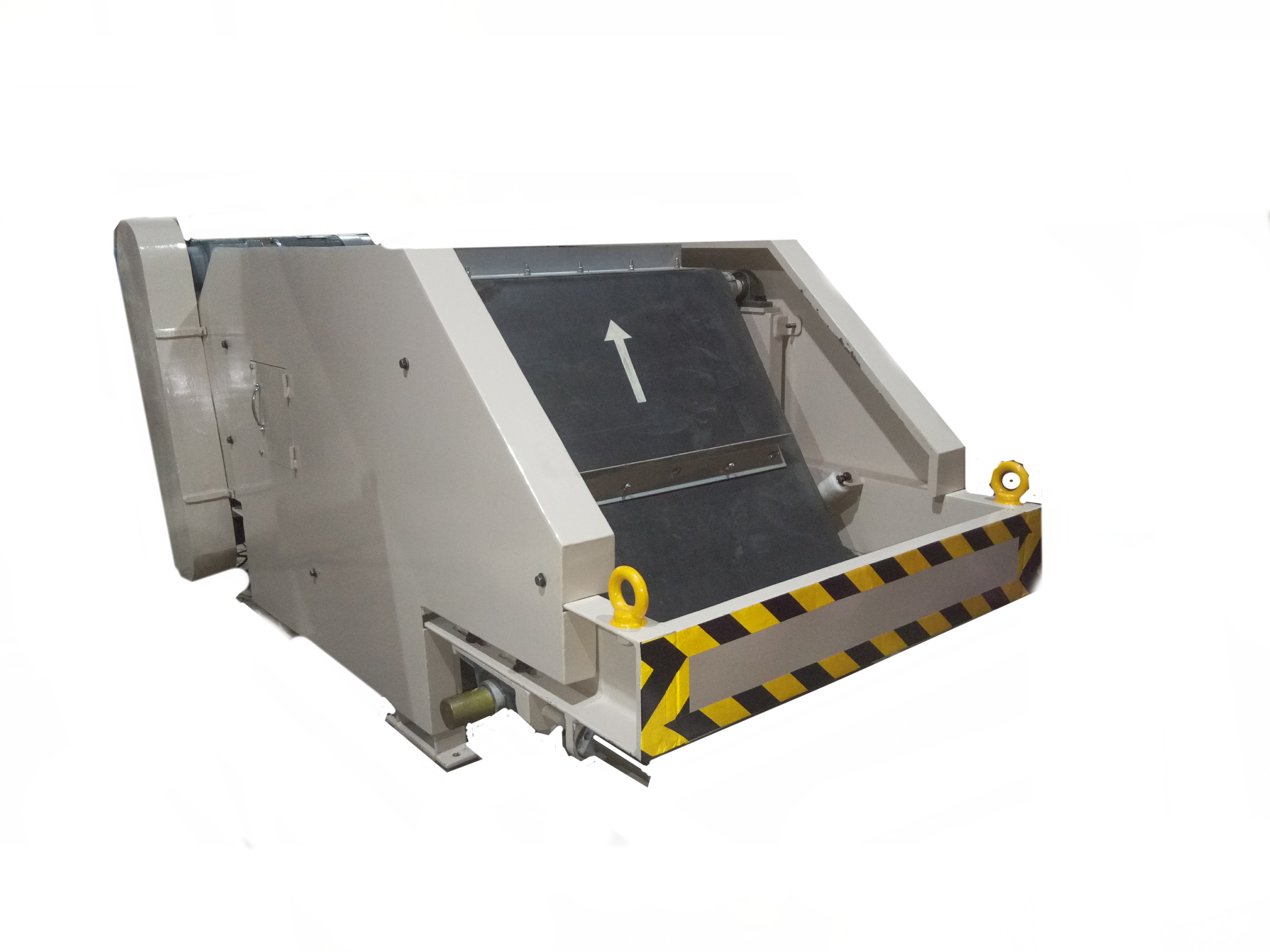

Electro Magnetic Overband Separator

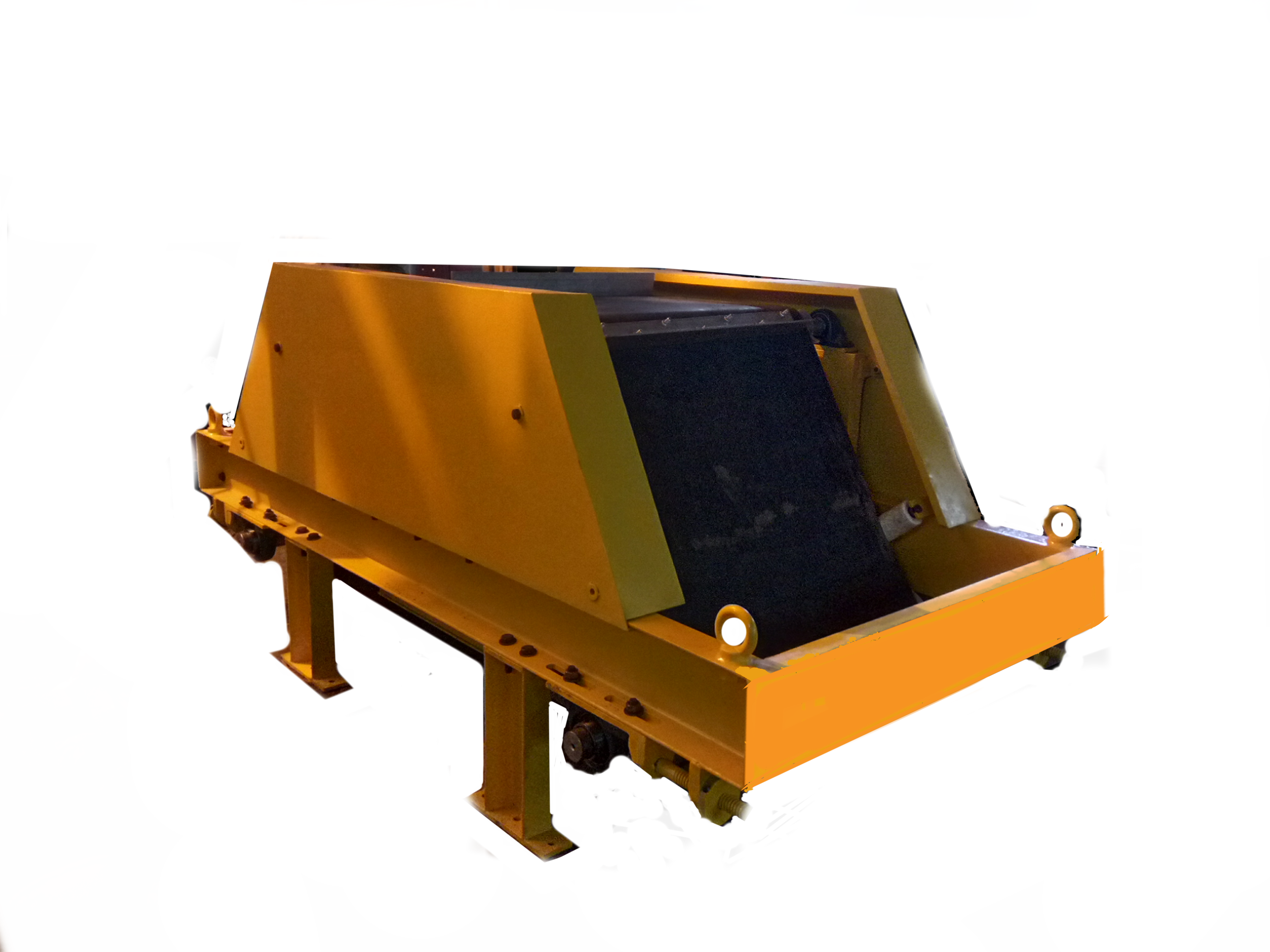

Electro Magnetic Overband Separator

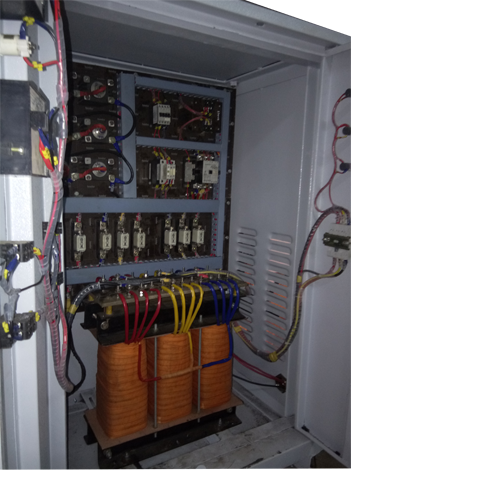

Control Panel
